Lampholder Edison Screw Shade Rings and Hook

Name: Lampholder Edison Screw Shade Rings and Hook
Brand: Lamps and lights
SKU: LH06-ES
Availability: InStock

Lampholder Edison Screw Shade Rings and Hook

£17.90 – £24.10

Lamp holders Edison Screw with Shade Rings and Hook. The flex cord grip can thread through the hook to be wired up. Internally earthed and supplied with 2 shade rings to safely retain a lamp shade with a 1 ½” opening. Made in the UK from solid brass to BS EN 60238.

These bulb holders with hooks are useful for hanging a heavier shade with an edison screw size hole (27mm). We also supply with 2 shade rings so you get a really secure hold on the light shade.

For more help on choosing the right bulb holder for your project maybe start with our Blog “Our guide to lampholders” and also checkout the “Related Blogs & FAQ’s” on this page for loads more useful information.

Product options available
(Select option from dropdown above)

SKU code	Price	Description
LHbrass06-ES	£17.90	Brass bulb holder with hook and shade rings Dimensions: 3.8 × 3.8 × 6.6 cm
LHchrome06-ES	£24.10	Chrome bulb holder with hook and shade rings Dimensions: 3.8 × 3.8 × 6.6 cm
LHantique06-ES	£20.40	Vintage bulb holder with hook and shade rings Dimensions: 3.8 × 3.8 × 6.6 cm

Additional information
Reviews (0)

Additional information

Weight	Choose an option to display
Dimensions	Choose an option to display

Reviews

There are no reviews yet.

Be the first to review “Lampholder Edison Screw Shade Rings and Hook”

You may also like…

Ceiling Rose with Hook

£19.70 – £25.30

Colour options available
PRODUCT DETAILS
Prismatic Holophane glass light shade – Globe

£49.60 – £122.70

Shade sizes available
Small, Medium, Extra large
PRODUCT DETAILS
Lamp shade holder for a 3″ rim glass lamp shade

£12.70 – £16.00

Colour options available
PRODUCT DETAILS

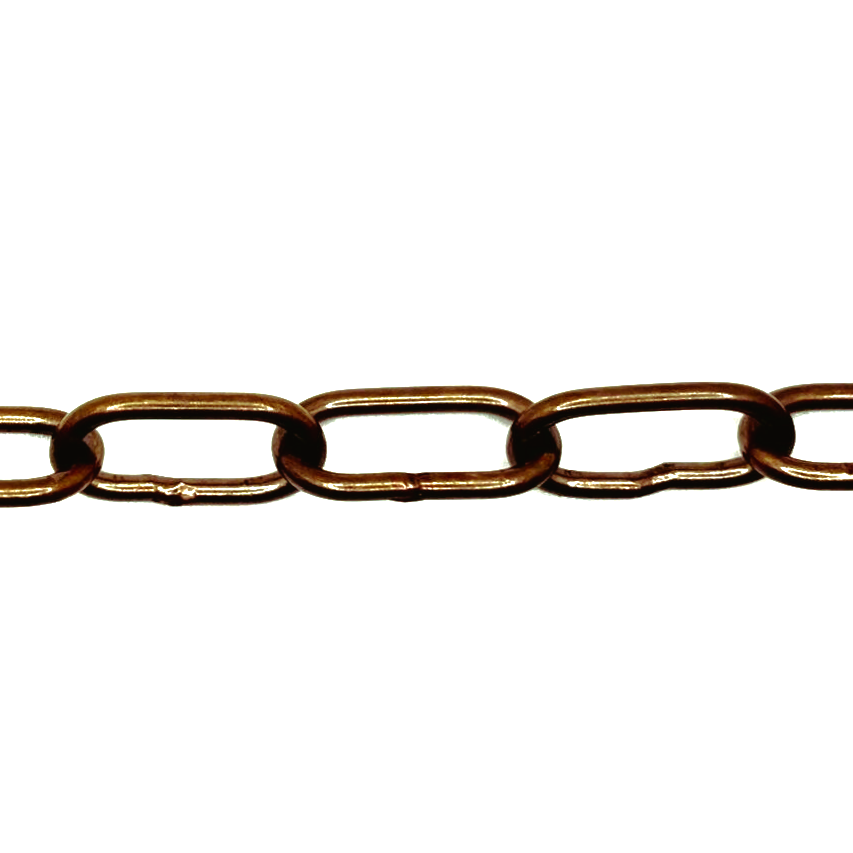

Lighting Chain – Large Link

£18.47 – £23.88

Colour options available
PRODUCT DETAILS

Bulb holder types explainedCalvin2022-08-31T14:47:01+01:00

Bulb holder types explained

SBC – small bayonet cap fitting takes a SBC bulb. Also known as B15d . Cap measures 15mm across.
BC – bayonet cap fitting takes a BC bulb. Also known as B22d. Cap measures 22mm across.
SES – small edison screw fitting takes a SES bulb. Also known as E14. Cap measures 14mm across.
ES – edison screw fitting takes an ES bulb. Also known as E27. Cap measures 27mm across.
GES – giant edison screw fitting takes a GES bulb. Also known as E40. Cap measures 40mm across.

Related glossary entries: Bayonet Edison

Do I need 2 or 3 core lamp flex?Calvin2021-11-10T16:05:48+00:00

Do I need 2 or 3 core lamp flex?

When using any metal light fittings you need to earth the fitting to reduce the risk of electric shock. You therefore need to use our 3 core light flex in either our round or twisted braid as both have live, neutral and earth wires. Our 2 core braided flex only has live and neutral wires and therefore is only suitable for use with non-metal light fittings. If in any doubt please always refer to a qualified electrician.

Watch video in new window

How to unlock a ‘locked’ lampholder?Calvin2021-07-27T14:46:20+01:00

How to unlock a ‘locked’ lampholder?

Edison Screw lamp holders have a safety feature that mean once put together they cannot easily be unscrewed. This is to ensure you do not unscrew the whole ES lampholder when changing the light bulb. Safety essential, but not ideal if you have put it together and need to unscrew it again. However with a little patience, it is possible. See our video to see how. All E27 lampholders should have this safety feature.

Watch video in new window

How to wire up lampholders?Calvin2022-08-31T14:52:07+01:00

How to wire up lampholders?

The earth is marked in the middle of the insert. The live is the one that from underneath you can see goes across to the centre of the insert.

We also have a list of useful “How to” videos on our YouTube channel that includes a video “Metal Bayonet Lampholder Wiring & Testing” where you can see our bayonet cap lamp holder being wired up and tested by an Electrician.

Please do check your work with an electrician though as this advice is strictly general & can vary depending on many factors relating to the individual use of a product and your domestic set up.

Related glossary entries: Bayonet Edison

I’m having trouble putting the side entry lamp holder kit together?Calvin2022-03-15T16:57:31+00:00

I’m having trouble putting the side entry lamp holder kit together?

Our side entry lamp holder kits are usually put together for you. If not, you just need to switch the reducer round.

Undo the reducer screwed on the top of the bung.
Screw the side entry tube onto the bung where the reducer came off.
Put the reducer on top of the side entry tube ready for your lampholder.

The side entry tube is now the right way up so the flex can be gripped by the black grip screw above the entry hole in the tube.

Which Amp Lighting Flex or Plug can I use?Calvin2022-09-01T12:03:59+01:00

Which Amp Lighting Flex or Plug can I use?

The conversion of Watts to Amps is governed by the equation Amps = Watts/Volts so if you check how many Watts your bulb(s) will be, you can work out what amperage flex or switch you will need. For example 4 watts/240 volts = .016 Amps for 1 x 4 Watt bulb.

Our Bayonet Cap Lamp holders are generally 2 AMP rated and our Edison lamp holders 4 AMPS. Our Flex specifications can be found here.

We are not qualified electricians and only offer guidance, which can change. If you are not a qualified electrician you should always get any electrical work you do properly checked & certified.

Which LED bulb should I choose?Calvin2022-09-01T12:17:07+01:00

Which LED bulb should I choose?

Well it’s now all about the Lumens, not Watts. Previously you chose your bulb brightness by the level of Watts i.e a 40, 60 or 100 watt bulb.
But, wattage is not actually the measure of a bulb’s brightness, but is its energy usage. There is then, a direct correlation between watts and the bulb’s brightness in incandescent bulbs but not with an ultra low consumption of a 4 Watt LED bulb.

LEDs (Light Emitting Diodes) work differently and so is the way we measure the brightness. As LEDs use far less energy, the amount of watts used is no longer an indicator as to the brightness of the bulb.

Also there is no exact conversion from Watts to LEDs; a traditional 60 watt incandescent bulb can compare to anywhere between 2 and 12 watts in a LED bulb, but don’t panic, it’s just a case of knowing your required Lumen rating. Lumens are the ‘brightness’ measurement provided by a light bulb, and this is what you need to look for when choosing your new LED.

Our comparison guide is an approximation of Watts to Lumens for our bulbs only. An old 40 watt bulb would on average be between 300 to 500 Lumens.

So, now we know where previously we looked at a 40 watt incandescent bulb we may now choose perhaps a 4 watt LED, we may also want to choose our bulb based on the colour emitted. This is referred to as ‘colour temperature’ and is measured in Kelvins – with the higher the number, the whiter and cooler the light given off i.e. anything under 4000K tends to produce a warmer, more gentle light and anything over that produces a cooler brighter white light, mostly used for task areas such as kitchens and work areas.
The average of an old style incandescent was between 2,700 and 3,500 Kelvin. So if colour rendering is your deciding factor then choose your LED bulb by its Kelvin rating.

Which wattage bulb can I use?Calvin2022-09-01T12:21:03+01:00

Which wattage bulb can I use?

Our BC, SBC and SES range of lampholders are all 2 amp rated so you can use a bulb up to 60W.
Our ES lampholders are higher amp rated at 4 amps so you can use a bulb of up to 100W.
All of our LED light bulbs are only a few Watts so are suitable for all of our lampholders.
Please see our Light Bulbs FAQs for more details and help in choosing the right LED bulb for you.

Related glossary entries:

Why is my lampholder not working?Calvin2022-03-15T16:53:55+00:00

Why is my lampholder not working?

Is it Faulty? Probably not. Inside the lamp holder there are two grooves. The insert should be slotted into the grooves. If it isn’t inserted correctly then the lamp holder will not connect to the bulb properly. You could also check that the earth wire is not preventing the switch from seating properly so the pins are not depressed enough to make the safety contact.
